DC Combiner Box 1500VDC 16 In 1 out

DC Combiner box 1500VDC 16 In 1 out
DC Combiner box 1500VDC 16 In 1 out

FSCB-PV16/1 Solar Combiner Box

ADVANTAGES

Features

Applicable for outdoor PV systems.
16 PV String inputs with maximum string current at 15A.
Wide DC voltage input range with maximum open-circuit voltage up to1500V.
With PV dedicated DC fuses with Maximum voltage not less than 1000V.
Waterproof terminals.
SPD Lightning protection.

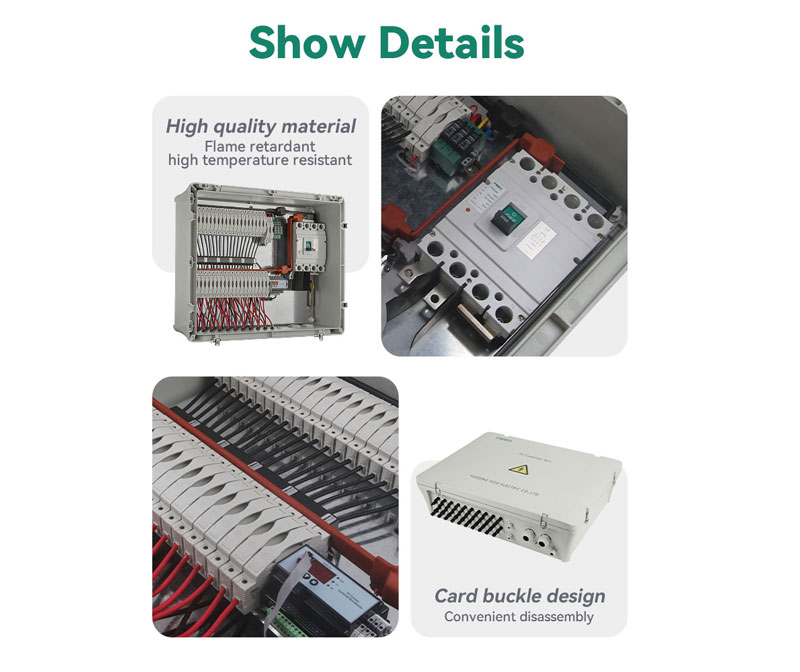

Show Details



DESCRIPTION

FSCB-PV16/1 PV combiner box bus synthetic DC input of 16 PV components to 1 output. Each channel is with a fuse. Output side is equipped with lightning protection and circuit breaker. It greatly simplify input wiring of DC power distribution cabinet and inverter. Realize lightning protection, short circuit protection and grounding protection. PV combiner box divided into two types: intelligent box and non-intelligent box. Intelligent PV combiner box is equipped with monitoring unit, then detect input current of each string, detect inside temperature, detect lightning protection status, detect circuit breaker status and summarize output voltage and so on.
Design and configuration strictly accordance with the "Technical specification for photovoltaic junction equipment"CGC/GF 037:2014.Provide users with a safe, brief, beautiful and applicable photovoltaic system products.
The product adopts outdoor wall mounted type, which adapt to the harsh environment. In addition to the core components, the other can be customized by user requirements.



TECHNICAL PARAMETERS

Name FSCB-PV16/1
  Electric parameter
System maximum DC voltage 1000
Maximum input current for each string 15A
Maximum input strings 16
Maximum output  switch current 200A
Number of inverter N
Number of output strings 1
  Lightning protection
Category of test Ⅱ grade protection
Nominal discharge current 20kA
Maximum discharge current 40kA
Voltage protection level 3.8kV
Maximum continuous operating voltage Uc 1050V
Poles  3P
Structure characteristic Plug-push module
  System
Protection grade IP65
Output switch DC isolation switch (standard)/DC circuit breaker (optianal)
SMC4 Waterproof Connectors Standard
PV DC FUSE Standard
PV Surger protective device Standard
Monitoring module Optional
Precenting diode Optional
Box material Metal
Installation method Wall mounting type
Operating Temperature -25℃~+55℃
Elevation of Temperature 2km
Permissible relative humidity 0-95%,no condensation



SCHEMATIC DIAGRAM

SCHEMATIC DIAGRAM

DC550V
DC1000V
