DC Combiner Box 1000VDC 12 In 1 Out

DC Combiner Box 1000VDC 12 In 1 Out
DC Combiner Box 1000VDC 12 In 1 Out

Technology indexes

1. A high voltage fuse provided for the counterattack prevention of each PV input array.
2. A special high-voltage lightning protection device for the PV module.
3. A special high-voltage circuit breaker for output control of the PV module.
4. A degree of protection of IP65 for meeting the need of outdoor installation.

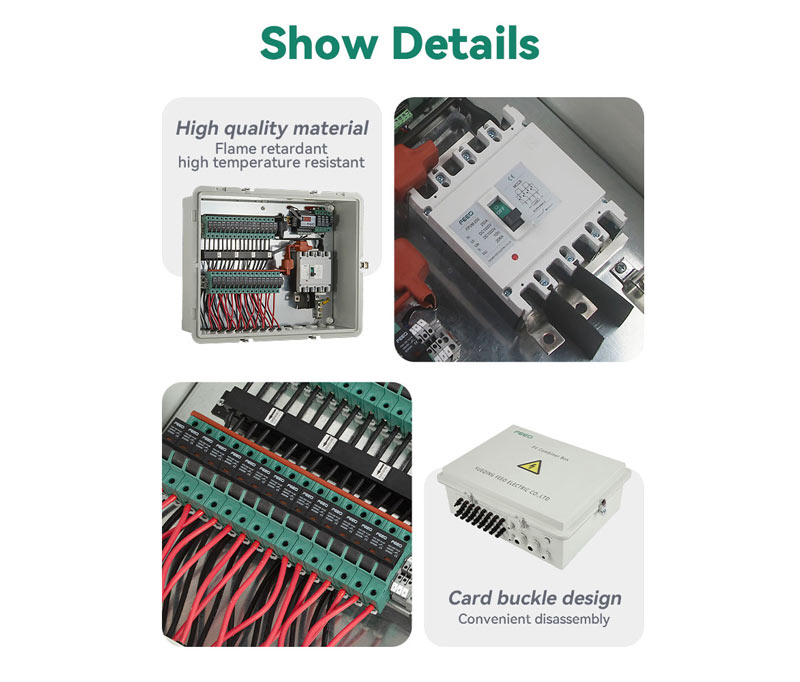

show Details



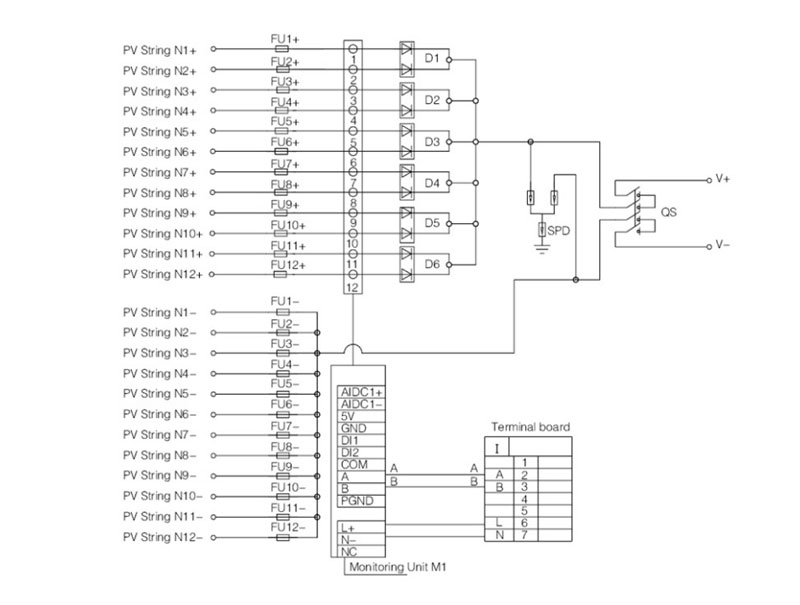

FSCB-PV12/1 PV combiner box bus synthetic DC input of 12 PV components to 1 output. Each channel is with a fuse. Output side is equipped with lightning protection and circuit breaker. It greatly simplify input wiring of DC power distribution cabinet and inverter. Realize lightning protection, short circuit protection and grounding protection. PV combiner box divided into two types: intelligent box and non-intelligent box. Intelligent PV combiner box is equipped with monitoring unit, then detect input current of each string, detect inside temperature, detect lightning protection status, detect circuit breaker status and summarize output voltage and so on.
Design and configuration strictly accordance with the "Technical specification for photovoltaic junction equipment"CGC/GF 037:2014.Provide users with a safe, brief, beautiful and applicable photovoltaic system products.
The product adopts outdoor wall mounted type, which adapt to the harsh environment. In addition to the core components, the other can be customized by user requirements.



Name FSCB-PV12/1
  Electric parameter
System maximum DC voltage 1000
Maximum input current for each string 15A
Maximum input strings 12
Maximum output  switch current 160A
Number of inverter N
Number of output strings 1
  Lightning protection
Category of test Ⅱ grade protection
Nominal discharge current 20kA
Maximum discharge current 40kA
Voltage protection level 3.8kV
Maximum continuous operating voltage Uc 1050V
Poles 3P
Structure characteristic Plug-push module
Protection grade IP65
Output switch DC isolation switch (standard)/DC circuit breaker (optianal)
SMC4 Waterproof Connectors Standard
PV DC FUSE Standard
PV Surger protective device Standard
Monitoring module Optional
Precenting diode Optional
Box material Metal
Installation method Wall mounting type
Operating Temperature -25℃~+55℃
Elevation of Temperature 2km
Permissible relative humidity 0-95%,no condensation
